Mission Control
This is where you can track your mission to the edge of space, live! It’s just like tracking any NASA space mission with the world map displayed at the front of the mission control room. If you are an educator, your students will love watching the live track on the digital projector at the front of your classroom or auditorium while they do mission critical exercises at their own “mission specialist consoles." Exercises such as extracting and plotting the flight data in Microsoft Excel can be done by using the Sub-account feature. You can access these features by clicking the menu box in the top left corner.

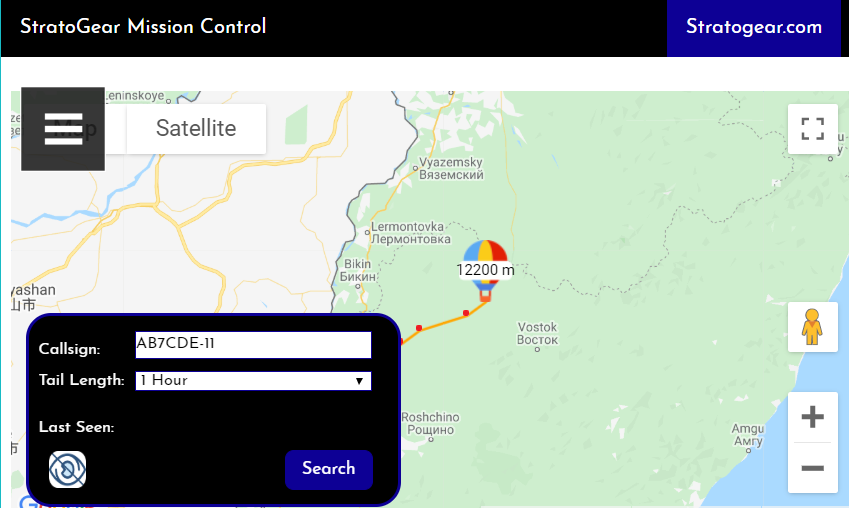

Enter the callsign and SSID in the callsign box and click “Search”. If your callsign is AB7CDE and your SSID is 11, then enter “AB7CDE-11”. As long as your stratotrack has line-of-site to a surrounding i-gate, you will see the flight-track live. The “Last Seen” should be less than 1 minute as the StratoTrack transmits once every minute.
Tail Length

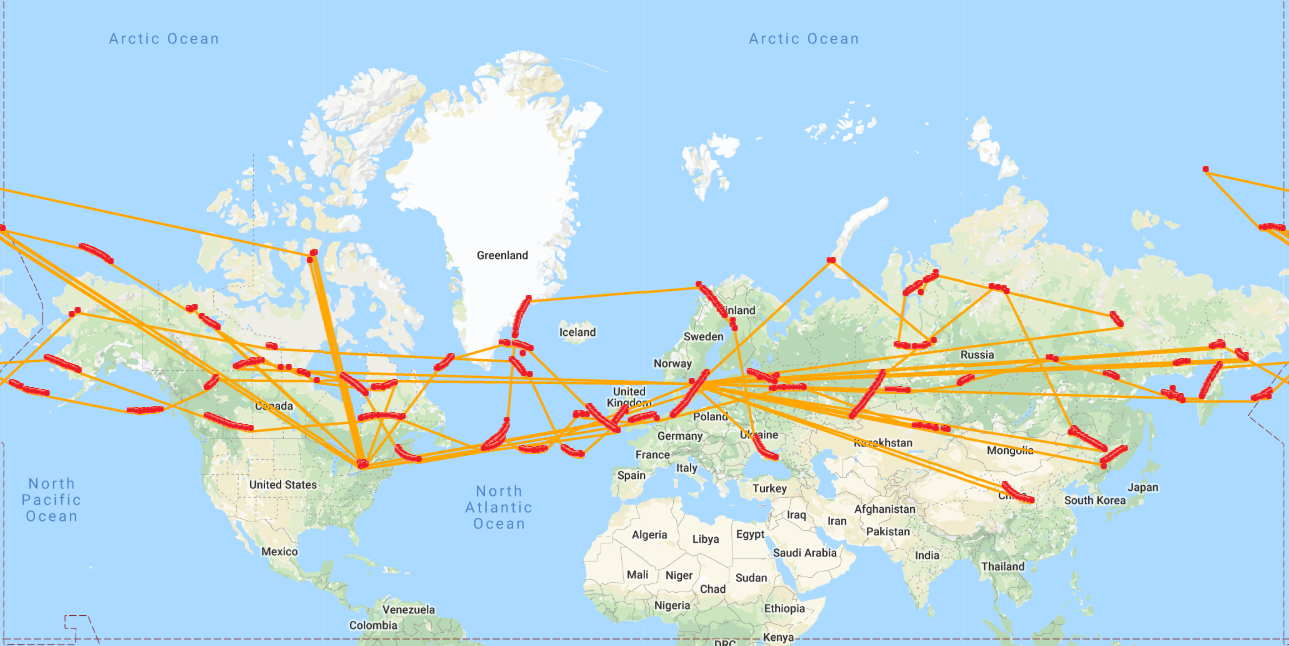

If you would like to see more than 1 hour of flight history, change the “Tail Length”. The “Tail Length” can even be as long as one year. This is enables you to create a historical flight track of a solar powered StratoTrack that has circumnavigated the globe multiple times.
Reading Flight Data on the Mission Control Page

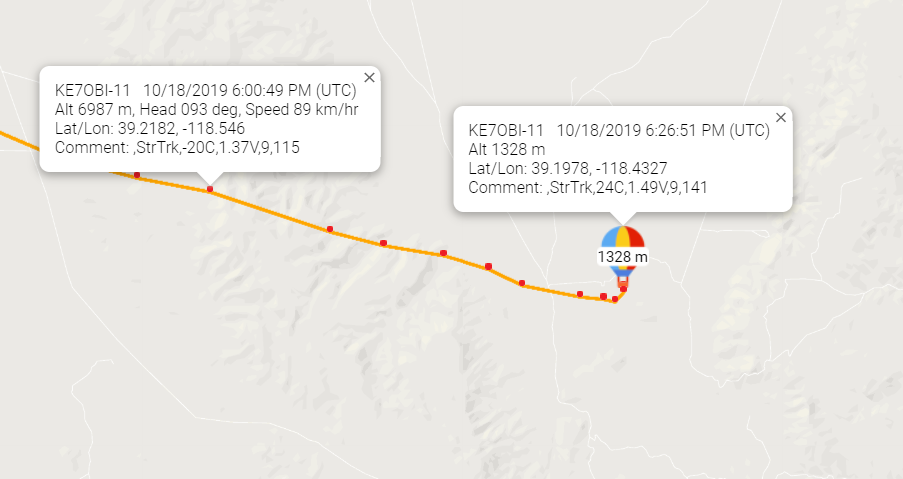

The balloon, as well as all dots along the flight path, represent a transmission received by an i-gate. Click on either the balloon or any of the dots to pull up the data for that particular transmission. This allows you to see the real-time temperature, voltage, speed, etc. It also allows you to do basic analysis such as calculating ascent rate (change in altitude divided by change in time). If your change in altitude between two transmissions one minute apart is 120 meters, then your ascent rate is 120m/60s or 2 meters-per-second. The StratoTrack always transmits at exactly one minute (60 second) intervals. The time displayed for each transmission may vary by a few seconds if the time on the i-gate that received that transmission is not set precisely.
Once you have your mission control page set up, click the box in the top right corner of the map to hide all the inputs and create a cleaner view.
